Kia Picanto: Interior Trim / Front Pillar Trim

Kia Picanto JA 2017-2024 Service & Repair Manual / Body (Interior and Exterior) / Interior Trim / Front Pillar Trim

Components and components location

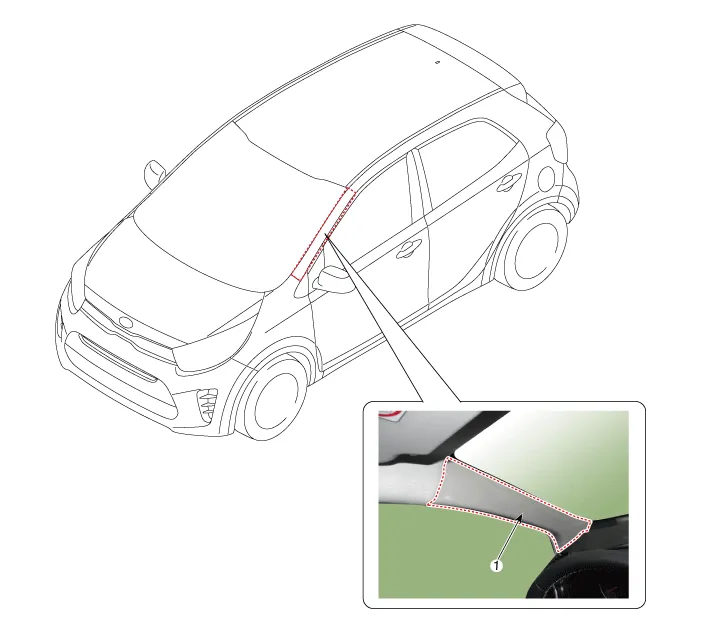

Component Location

1. Front pillar trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Using a remover, remove the front pillar trim (A).

Install in the reverse order of removal.

•	Replace any damaged clips.

•	Once the front piller trim has been removed, replace the clip (A) with a new one.
