Components and components location

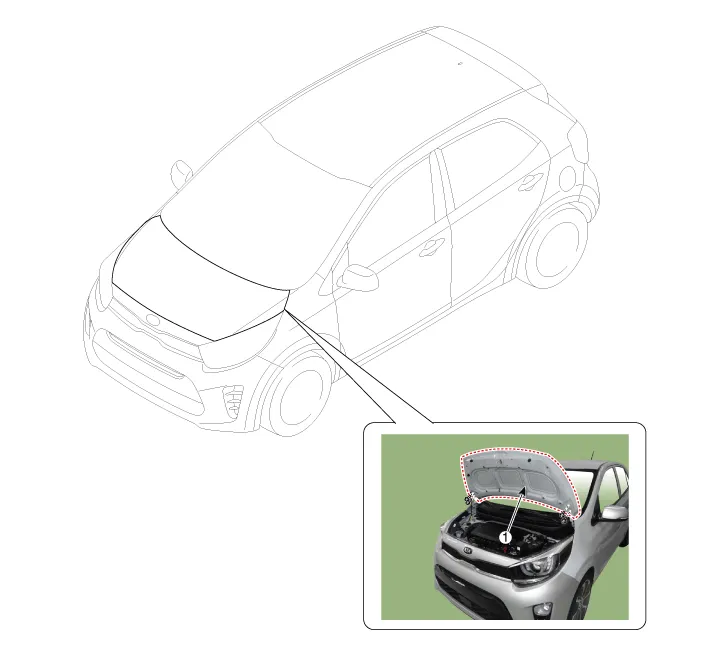

Component Location

1. Hood assembly

Repair procedures
Replacement

Be careful not to damage the hood and body.

Work in a group of two when removing and installing the hood.
Use a clip remover to remove clips.
1.
Remove the hood assembly (A) after loosening the hood hinge mounting bolts.
Tightening torque :
21.6 - 26.5 N·m (2.2 - 2.7 kgf·m, 15.9 - 19.5 lb·ft)

2.
Install in the reverse order of removal.

Make sure the hood locks/unlocks and opens/closes properly.
Adjust the hood alignment.
Hood
Repair procedures Adjustment 1. After loosening the hinge (A) mounting bolts, adjust the hood (B) by moving it up and down, or right and left. 2. Adjust the hood height by turning the hood ove ...

Hood Weatherstrip
Repair procedures Replacement 1. Remove the hood weatherstrip (A).    Be careful not to damage the hood and body. 2. Install in the reverse order of removal. & ...
