Kia Picanto (JA): Light bulbs / Light bulb position (Side)

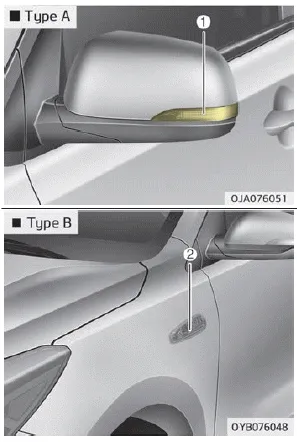

1. Side repeater lamp (LED type)
2. Side repeater lamp (bulb type)
1. Rear turn signal lamp (Bulb type) 2. Tail lamp (BULB type) 3. Stop and tail lamp (BULB type) 4. Tail lamp (LED type) 5. Stop and tail lamp (LED type) 1.
1. Open the hood. 2. Remove the headlamp bulb cover by turning it counterclockwise. 3. Disconnect the headlamp bulb socket-connector. 4. Unsnap the headlamp bulb retaining wire by pressing the end and pushing it upward.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: High Mounted Stop Lamp
Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Open the tailgate. 3. Loosen the high mounted stop lamp mounting nuts (A). 4. Disconnect the washer nozzle (A) and high mounted stop lamp connector (B). 5. Remove the high mounted stop lamp (C).
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Heater & A/C Control Unit(Manual)
Components and components location Components [NON ISG] Connector pin function No. Connector A Connector B 1 Low Battery 2 Common Illumination (+) 3 Ground HTD 4 Middle (Low) ISG Battery 5 Middle (High) - 6 High Detent out (-) 7 - 8 Sen
