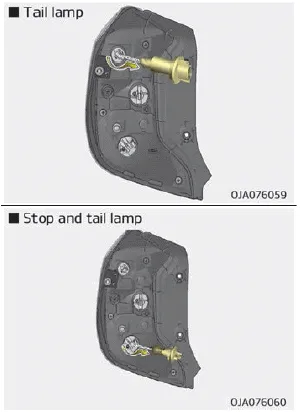

Kia Picanto: Light bulbs / Stop and tail lamp bulb
replacement
1. Open the tailgate.
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination lamp
assembly from the body of the vehicle.
4. Disconnect the rear combination
lamp connector.
5. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp
assembly to the body of the vehicle.
1. Remove the lamp assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical connector.
3. Separate the socket and the lens
