Kia Picanto: Crash Pad / Center Fascia Panel

Kia Picanto JA 2017-2025 Service & Repair Manual / Body (Interior and Exterior) / Crash Pad / Center Fascia Panel

Components and components location

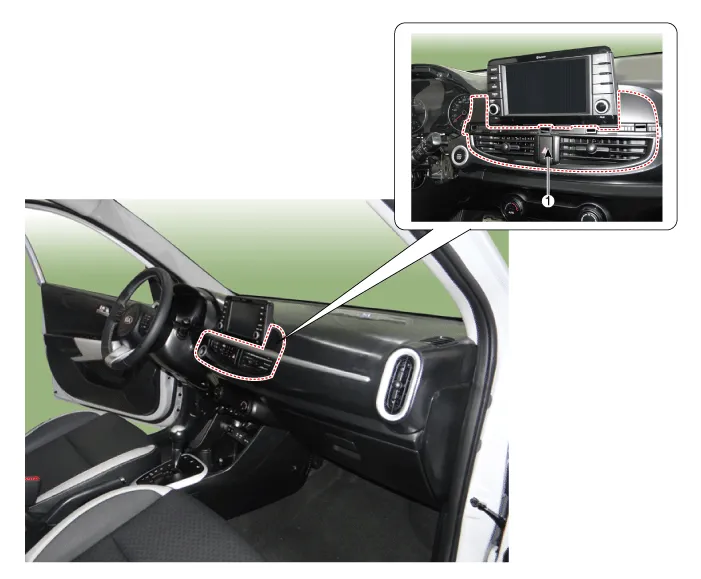

Component Location

1. Center fascia panel assembly

Repair procedures
Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Remove the cluster fascia panel (A) by using a remover.

2.
Remove the center fascia garnish (A) by using a remover.

3.
Remove the center fascia panel (A) by using a remover.

4.
Remove the center fascia panel (B) after disconnecting the hazard switch connector (A).

5.
Install in the reverse order of removal.

Replace any damaged clips.
