Kia Picanto (JA): Body (Interior and Exterior) / Front Seat Belt
Components and components location
| Components |

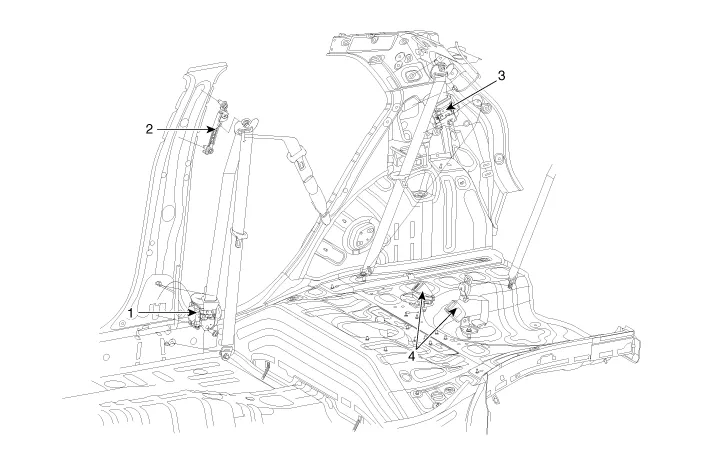

| 1. Front seat belt retractor 2. Height adjuster | 3. Rear seat belt retractor 4. Rear seat belt buckle |
Components and components location Component Location 1. Front seat back frame assembly 2. Front seat cushion frame assembly Repair procedures Replacement • Put on gloves to protect your hands.
Components and components location Component Location 1. Front seat belt retractor Repair procedures Replacement 1.Remove the center pillar upper trim.
Other information:
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Headlamp Leveling Switch
Schematic diagrams Circuit Diagram Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.Remove the crash pad side switch (A) after loosening the mounting screws.
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Heater Unit
Components and components location Component Location 1. Heater Unit Components [LH] 1. Heater Core Cover 2. Mode Control Actuator 3. Mode Control Actuator braket 4. Mode Cam 5. Mode Cam 6. Heater Core 7. Door Cover [Floor] 8. Heater Case [LH] [RH] 1.
