Kia Picanto (JA): If you have a flat tire (with spare tire) / Jack label

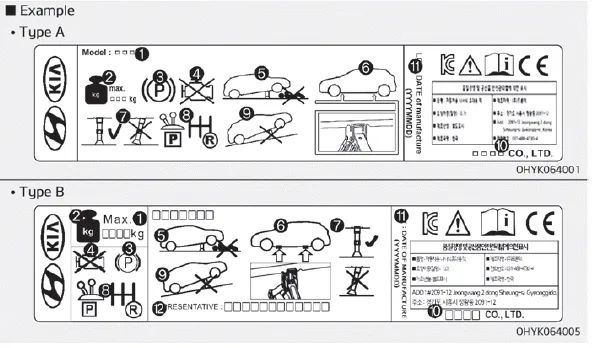

❈ The actual Jack label in the vehicle may differ from the illustration. For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking
brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is
supported by a jack.
6. The designated locations under the
frame
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
8. Shift into Reverse gear on vehicles
with manual transmission or move
the shift lever to the P position on
vehicles with automatic transaxle.
9. The jack should be used on firm
level ground.
10. Jack manufacturer
11. Production date
12. Representative company and address
1. Park on a level surface and apply the parking brake firmly. 2. Shift the shift lever into R (Reverse) with manual transaxle or P (Park) with automatic transaxle.
Please read the instructions before using the Tire Mobility Kit. 1. Compressor 2. Sealant bottle The Tire Mobility Kit is a temporary fix to the tire and have the tire inspected by a professional workshop as soon as possible.
