Kia Picanto (JA): Suspension System / Front Suspension System
Components and components location

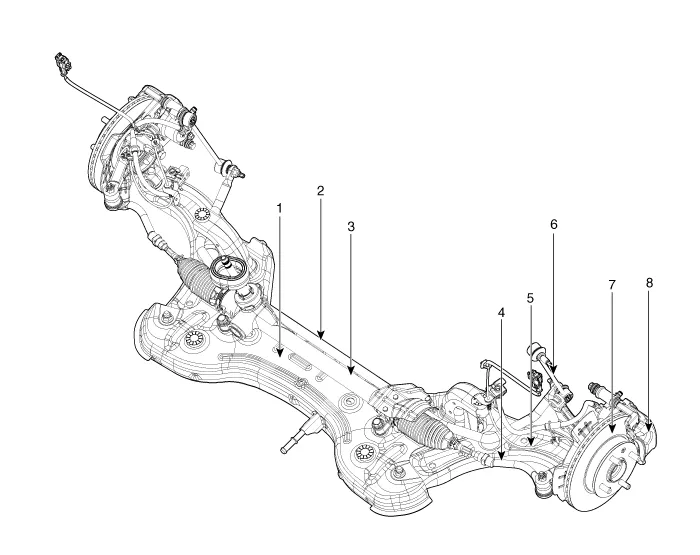

| Components Location |
| 1. Sub frame 2. Stabilizer bar 3. Gear box 4. Tie rod end | 5. Front lower 6. Stabilizer link 7. Brake disc 8. Brake caliper |
Specifications Specification Front Suspension Item Specification Suspension type MacPherson Strut Shock absorber Type General Valve Rear Suspension Item Specification Suspension type Couple Torsion Beam Axle Shock absorber Type General Valve Wheel & Tire Item Specification Front Rear Wheel Aluminum 5.
Components and components location Components Location 1. Lock nut 2. Insulator dust cap 3. Self lock nut 4. Strut insulator 5. Strut bearing 6.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Back View Camera System
Components and components location Component Location 1. Back view camera 2. AVN head unit 3. steering angle sensor Description and operation Description 1. To display back of the vehicle to assist the driver, it receives vehicle rearside image signal from the rearview camera and displays it on AVN head unit monitor
Kia Picanto (JA) 2017-2026 Service & Repair Manual: ESCL(Electronic Steering Column Lock)
Components and components location Component Repair procedures Removal 1.Disconnect the negative(-) battery terminal. 2.Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.Remove the steering column upper and lower shrouds.
